B-4000 “Cross Axes” Vertical Row

     Price $3400
     L = 59.9”
     W = 38.5” (42”)
     H = 44.7”
     Wt = 360lb

Perhaps the most popular of the "cross-axes" machines.   Using its "cross-axes technology",  the machine stresses the more "lateral" aspects of the upper back muscles (contributing to the “V taper" sought after by many athletes).   Machine is adjustable to different sized operators,  and utilizes a foot-actuated mid-movement racking mechanism for easy access to the machine  -  quickly becoming a 'classic'.




Custom / Collectors Machines

C-1000 Vertical Chest Press(Lamb C-1000RB)

     Price $3700
     L = 63.1”
     W = 41”
     H = 54.4”
     Wt = 400lb

The classic Lamb Bodybuilding Machines C-1000 Vertical Chest Press with vertical grips added to the handlebars.   “Go for maximum weights in the confidence that you can always simply walk away if you fail.”  The machine features adjustable seat for different sized operators, a foot-actuated mid-movement racking mechanism, infinitely adjustable depth stop for different ranges of motion,  and the extremely heavy-duty construction consistent with anything built by either Lamb Bodybuilding Machines or Cross Axes Tech


L-5000 Glute Press(Lamb L-4000RB)

     Price $3800
     L = 78.6”
     W = 44” (72” WB)
     H = 47.5”
     Wt = 440lb

Modeled after the Lamb ‘classic’,  this machine features the same robust construction and design ‘hardpoints’ as the Lamb ‘classic’.   This machine’s foot plate moves through a rearwardly extending arc (opposite the seated leg press),  resulting in a greater focus on gluteal development (while still heavily working the quads).   It complements the other Cross Axes Tech compound-    movement lower-body developing machines,  providing a variation in lower-body development not offered by the other three machines.   Just like the other three compound-movement variable-resistance leg developing machines in our line,  it features a hand-actuated mid-movement racking mechanism and infinitely adjustable depth stop.


L-6000 Inverted Leg Press (Lamb prototype)
     Price $4500
     L = 75.6”
     W = 44” (66” WB)
     H = 47.7”
     Wt = 495lb

A variable resistance inverted leg press (increasing the load as the legs are straightened) utilizing a curved lower back support which spreads the bending stresses on the lower spine out over multiple spinal joints instead of the focused bending stresses associated with flat back versions of the machine.   The machine also features a low loading point for the weights,  with no weights loaded in the dangerous position directly above the user.


competitors’ independent effort arms which allow the body to skew its symmetry in order to accommodate differences in strength side to side.

The machine is variable resistance with a carefully thought out and researched force output profile which provides maximum muscle-loading throughout the exercise stroke.  The machine's body-support pad adjusts to different sized operators and has both a foot-actuated racking mechanism for easy access and an infinitely adjustable bumper column for depth adjustment.”


The following machines due to either their size or complexity are not 'production" offerings but will be custom built for collectors that must have them.

B-3000 Vertical Row

   (modified version of Lamb B-3000RB)

     Price $3200
     L = 60.7”
     W = 41” (48”)
     H = 47.6”
     Wt = 342lb

The Cross Axes Tech version of a traditional vertical row.   Modeled after the Lamb B-3000,  it features the same robust construction of the Lamb "classic".  Variable resistance getting progressively lighter as the arms are retracted toward the chest in accordance with human body mechanics.   A generous chest constraint pad for body-machine contact load distribution, resulting in the constraining stresses applied to the muscle bellies (not how much chest compression you can endure like incline lever rows).  Operator height adjustment and foot-actuated mid-movement racking mechanism round out the package.


Back Department

Cross Axes Tech you can be assured that machine durability is first,  and you will find that our leg extension and leg curl machines are still easily accessed.   The machine’s four-bar linkage applies a variably-resistive force that can otherwise only be obtained by using a far less durable cam and cable (or belt) force-varying mechanism.   The machine also features both a hand-actuated racking mechanism and infinitely adjustable depth stop for those who would like to adjust how much pre-stretch they prefer.

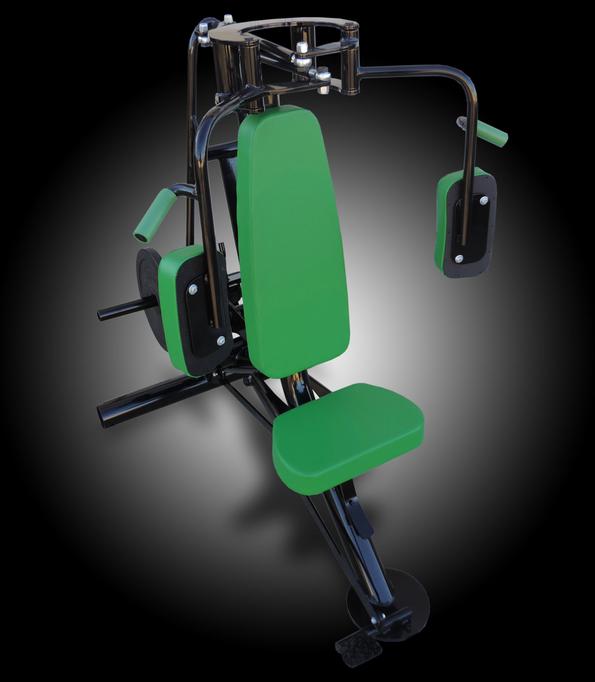

C-5000 Pectoral Fly(New)

     Price $5100
     L = 60.4”
     W = 44”
     H = 68.3”
     Wt = 470lb

A new machine developed by Henry Maag.   A plate-loaded pectoral fly machine for those who don’t want to be limited to a 300lb weight stack with constant resistance.   The machine features large comfortable upper arm engaging pads which comfortably distribute the variably-resistive load directly to the upper arms (instead of the hand engaging type fly machines which involve transmitting the load through the much weaker elbow joints).   Adjustable for different operator heights, and, featuring a mid-movement,  foot-actuated racking mechanism for easy access to the machine.


    Lat Isolation Machine (New)

     Price $5100
     L = 59.5”
     W = 60”
     H = 65”
     Wt = 470lb

The third of three 'custom' machines being offered by CROSS AXES TECH.   This is a recently developed machine by Henry Maag based on a 'utility patent' which he received back in the nineties.   This machine is a true outer lat isolation machine;  directly effecting the upper outer portions of the Latissimus Dorsi muscles just below the arms (at their insertions at the base of the arms),  resulting in adding mass directly under the arms.


Meet Our Machines  (Sales FOrce)

Incline version of the Cross Axes Chest Press with all of the same features.   The machine features a shallow 23° incline which has been investigated and tested to far better isolate the upper pectoral muscles than the 30-45° versions which are common to most gyms.


C-4000 Pullover(Lamb C-2000RB)
     Price $3400

     L = 58.5”
     W = 41”
     H = 52.1”
     Wt = 360lb

First developed by Lamb Bodybuilding Machines,  this pullover machine provides for the performance of pullovers through the more traditional path of a barbell pullover on a bench without the stress of the bar trying to land on your chest or neck.   Beside being fully adjustable for different height operators,  the machine also includes both a foot-actuated racking mechanism for easy access and an adjustable operator thigh hold-down bar which comfortably holds an operator in the operating position for those who pull enough weight to be pulled out of the machine.

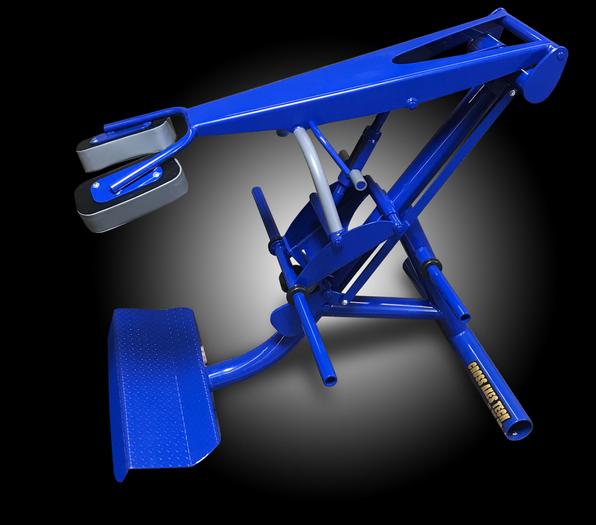

L-1000 Squat Machine   (Lamb L-1000RB)

     Price $4100
     L = 65.7”
     W = 44” (50” WB)
     H = 57.7”
     Wt = 475lb

The mother of all compound leg movements,  an excellent overall bodybuilding machine for those who can handle the exercise.   Varies the applied resistive force to combine quarter squat weight at quarter squat depth, half squat weight at half squat depth,  and full squat weight at f
ull squat depth into one relentless load on the quadriceps muscles in each repetition,  all in the safety of a machine that can be walked away from at any point.   The machine is infinitely adjustable for different height operators and different squat depths,  and,  like all of Cross Axes Tech’s leg machines,  features a mid-movement hand-actuated racking mechanism for easy entry and exit from the machine.


C-3000 “Cross Axes” Incline Press

     Price $3600
     L = 75.2”
     W = 41”
     H = 40.3”
     Wt = 407lb

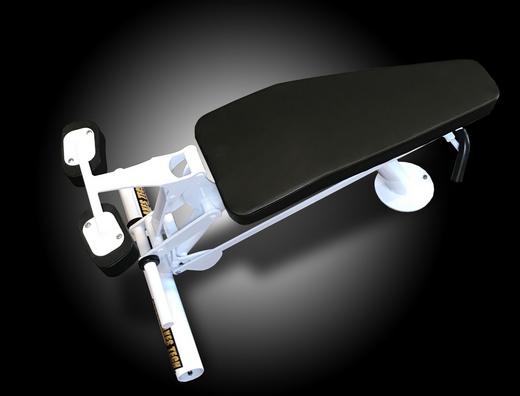

L-8000 Lying Leg Curl(Lamb L-6000RB)
     Price $2900
     L = 65.9”
     W = 38.5”
     H = 33.0”
     Wt = 303lb

A four-bar linkage driven leg curl machine with ‘effort arm’ journaled between the operator’s knees.   Anyone who has experienced muscle-building leg extension and leg curl machines over the years knows that machines with their ‘effort arms’ journaled between the operator’s knees are far more durable than their offset-arm counterparts.   It is a trade-off made by manufacturer’s engineering departments,  sacrificing durability for ease of access.   With


S-1000 “Cross Axes” Shoulder Press

     Price $3300
     L = 52.9”
     W = 38.5” (47”)
     H = 51.2”
     Wt = 354lb

Like the Lamb original,  this arm curl machine,  unlike the majority of arm curl machines on the market,  applies a force-couple to the operator’s forearms;  resulting in complete isolation of the operator’s biceps muscles.   The machine features a racking mechanism and both seat height and handlebar adjustments for different height operators.



L-7000 Leg Extension(Lamb L-5000RB)

     Price $3400
     L = 63.5”
     W = 38.5”
     H = 46.8”
     Wt = 323lb

“Greatest range of motion of any leg extension machine ever built” (equivalent to the Lamb L-5000 for those familiar with it).   This machine’s four-bar linkage applies a much flatter variable-force profile than any simple single arm leg extension machine,  much like that that can only be obtained on much less durable cam and cable type leg extension machines.   Machine’s ‘effort arm’ is journaled between the knees (instead of offset to the side) for much higher durability and to avoid the almost inevitable ‘effort-arm twist’ associated with most offset arm versions.   The hand-actuated racking mechanism allows easy access to a machine that would be hard to access otherwise because of so great a range of motion.”


Leg Department

Arm Department

C-2000  “Cross Axes” Chest Press
     Price $3500
     L = 73.5”
     W = 41”
     H = 41.6
     Wt = 402lb

Using the "cross-axes technology" developed by Cross Axes Tech,  this machine,  like all of our "cross-axes" machines,  applies a truly greater range of motion than our competitors’ converging independent effort arms,  and because the arms are mechanically linked to each other they move at the same rates and symmetry on each side of the body which promotes body symmetry unlike our


B-6000 Trap Pull(Lamb B-4000RB)

     Price  $3400
     L = 59.5”
     W = 41”
     H = 47.5”
     Wt = 352lb

Modeled after the Lamb "classic",  this machine develops the trapezius and rear deltoid muscles through a plane rearward and upward through the shoulder joints.  Like all of our other upper-body developing machines,  it is adjustable for different sized operators,  is variable resistance,  and features a foot-actuated racking mechanism.


Chest Department

A-1000 Arm Curl Machine(Lamb A-1000RB)

     Price $2800
     L = 51.6”
     W = 38.5”
     H = 41.9”
     Wt = 259lb



B-1000 Pulldown (Lamb B-1000RB)

     Price $4100
     L = 76.8”
     W = 44” (52”)
     H = 53.3”
     Wt = 504lb

“The ‘Pumpjack’ is back”.   A Lamb "classic" - the best variable resistance pulldown machine ever built.

Features variable-resistance provided by its robust four-bar linkage,  a foot-actuated racking mechanism for easy operator access,  and an infinitely adjustable thigh holddown bar utilizing a screw-type mechanism which securely holds the operator down (unlike the ‘friction’ pads used by others).


L-4000 Seated Leg Press(Lamb L-2000RB)

     Price $4500
     L = 78.7”
     W = 44” (48” WB)
     H = 54.9”
     Wt = 490lb

Affectionately described by top gyms as a "1000 lb capacity old ladies machine",  this seated leg press is so comfortable,  so easy to access,  and so easy to use with no weights loaded that an 'old ladie' can use it,  and a few minutes latter it can be loaded heavy enough for the strongest strength athletes.   The machine provides a variable resistance compound leg movement which is both less exhausting than squats and bypasses the spinal compressive forces associated with squats while also being less stressful on the lower back than inclined carriage-type leg presses.   The machine’s seat is adjustable for 3 different operator height ranges,  and features a hand-actuated mid-movement racking mechanism for easy access and exit from the machine.


B-5000 Pullunder(Lamb B-5000RB)

     Price $3400
     L = 59.4”
     W = 41”
     H = 56.9”
     Wt = 363lb

This machine traces  a path rearward under the plane of the operator’s shoulder joints resulting in stimulating and developing the back muscles differently than all other back machines.   Machine is variable-resistance,  fully adjustable for different sized operators,  and features a foot-actuated racking mechanism for easy access to the machine.


First conceptualized and prototyped by Henry Maag back in the late 80’s,  this is the "cross-axes" machine which started it all.   Using its “cross-axes technology",  you be the judge of how this shoulder press compares with any other shoulder press on the muscle-building machine market.  Features an extended range of motion,  "cross-axes technology",  operator height adjustment,  depth adjustment,  and foot-actuated racking mechanism.

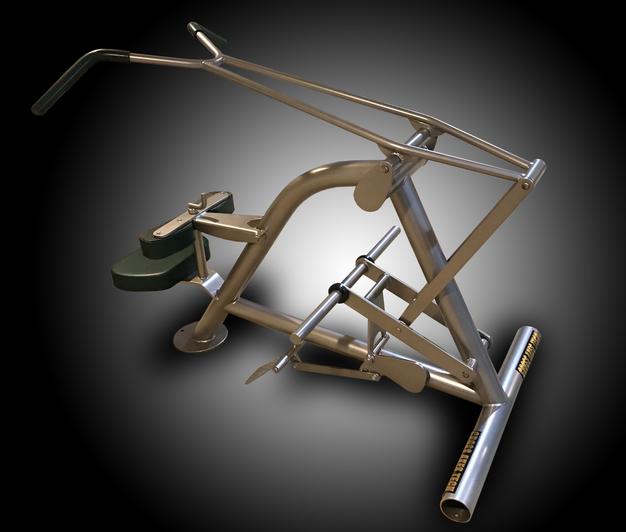

B-2000 “Cross Axes” Pulldown

     Price $4100
     L = 65.8”
     W = 41”
     H = 52.0”
     Wt = 441lb

“Cross-axes technology" in a variable-resistance pulldown machine,  stresses the more "lateral" aspects of the latissimus muscles (for those looking for a "v-taper" - this is your machine).   Adjustable to both different sized operator’s heights and thigh sizes ,  foot-actuated mid-movement racking mechanism  -  quickly becoming a 'classic'.


Shoulder Department

L-3000 Linear leg Press   (New)

     Price $5100
     L = 103”
     W = 44” (66” WB)
     H = 57.5”
     Wt = 470lb

A design that has been around since almost the beginning,  and built by almost every manufacturer that offers a leg press;  a 'custom' version of a linear leg press is now offered by CROSS AXES TECH to collectors which uses a 'crank and slider' engineering mechanism to apply a 'built-in' variably restive load to an operator's legs without the use of the 'rubber bands' which other manufacturers use for variable resistance in this movement.   As can be expected of CROSS AXES TECH engineering,  you will find this leg press far more durable and capable of handling far more weight than those of our competitors.
